Lexair 5C Low Pressure Pneumatically Actutated
Collet Closers
|
|

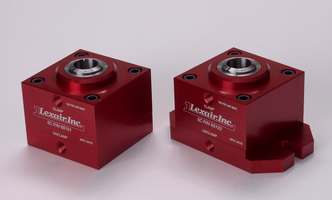

Our low pressure pneumatically actuated
collet closers are double acting, pull-back design for use with
"5C" style collets. These rugged units are made from solid
aircraft aluminum. The force generated by the drawtube is 7.5
times the line pressure applied. The units feature working
pressures to 150 PSI and come standard with a "5C" collet
wrench. Lexair can supply precision machined standard collets, master collets and pads, emergency collets, serrated collets plus uniquely shaped collets by special order. |
Specifications and Model Numbers
| Model Number | Collet Type | Maximum Air Pressure | Drawtube Force (pounds) | Port Size |
| 65101 | 5C | 150 PSI | 7.5 x Line Pressure | 1/4 NPT |
| 65102 Flange Mount |
5C | 150 PSI | 7.5 x Line Pressure | 1/4 NPT |

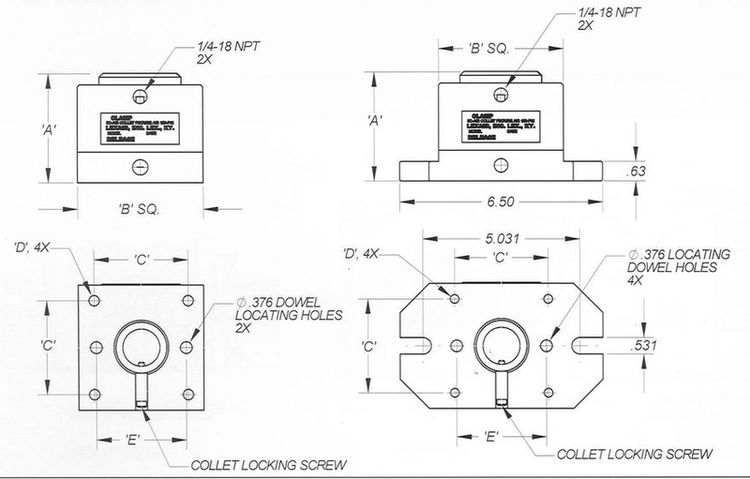

Technical Information
 |
|
Model Number |
Collet Type |
A |
B |
C |
D |
E |
|
65101 |
5C |
3.50 |
4.00 |
3.00 |
3/8-24 |
2.875 |
|
65102 |
5C |
3.50 |
4.00 |
3.00 |
3/8-24 |
2.875 |
|
All units of measure are inches. |
||||||
