Kopal® Mono-Bloc Clamps

Kopal® Mono-Bloc Clamps

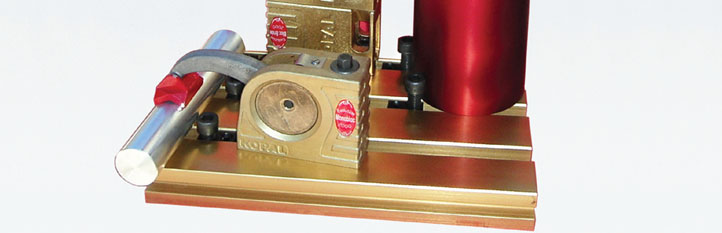

The Mono-bloc clamp is the quickest and easiest way to clamp parts on a Bridgeport-type mill.

One of the fastest and strongest milling clamps available anywhere

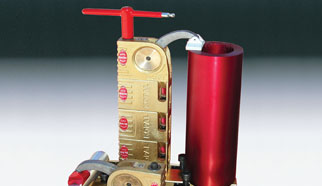

Modular design: Start with two clamps and build with tiers
Clamps are easily set up and broken down, making them ideal for odd-shaped parts and short cycle times.

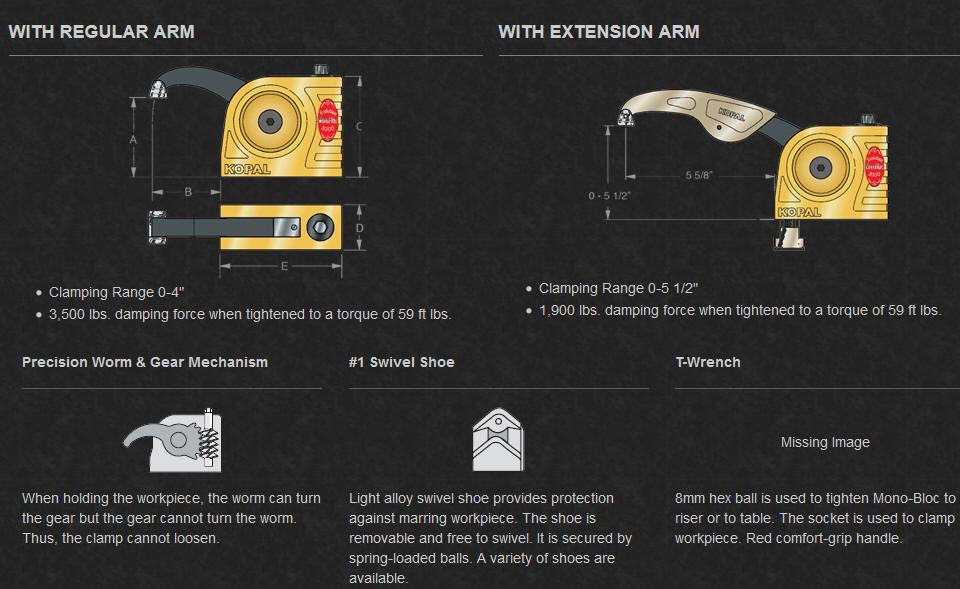

Worm-and-gear design ensures that the clamp will not loosen with use
Up to 13" clamping height with riser blocks

Click here to view complete line of Mono-Bloc style clamps. (Requires Adobe Acrobat Reader.) Allow several weeks for delivery, as these items are not stocked. Customer may be responsible for shipping charges on rush orders. Call for details.

Standard Duty Mono-Bloc Clamps

Part Number	Description
25705	Standard-Duty Mono-Bloc w/ 2 5/8″ Arm (includes T-wrench)
25710	Standard-Duty Riser Block
25515	Replacement Swivel Shoe
25720	T-Wrench for Standard-Duty Mono-Bloc
25540	Extension Arm
25310	Worm Drive

Deluxe Mono-Bloc Start-Up Kit

Part Number	T-Slot Size
25725	1/2″
25727	9/16″
25729	5/8″
25731	3/4″

Special Screws & T-Nuts for Mono-Bloc

Part Number	Description
25730	M-10 x 35mm Screw for 9/16″ T-Nut
25733	M-10 x 40mm Screw for 5/8″ & 3/4″ T-Nut
25736	M-10 x 45mm Screw for 13/16″ & 7/8″ T-Nut
25748	9/16″ x M-10 T-Nut
25751	5/8″ x M-10 T-Nut
25754	3/4″ x M-10 T-Nut
25757	13/16″ x M-10 T-Nut
25760	7/8″ x M-10 T-Nut

Contents of Starter Kit

Part Number	Description
25705	2 Standard-Duty Mono-Blocs w 2 5/8″ Arm
25710	2 Standard-Duty Riser Blocks
25540	1 Extension Arm
25720	1 Standard-Duty T-Wrench
25730	2 M-10 x 35mm Screws
25733	2 M-10 x 40mm Screws

Kit includes high-impact plastic storage/carrying case with room to store above tools and space to store additional T-nuts for other size mills.

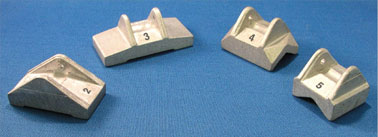

Shoes #2 & 3 give you a larger clamping surface –
Shoes # 4 & 5 are for holding round work pieces.

Part Number	T-Slot Size
25518	#2
25520	#3
25522	#4
25524	#5
25530	Set of 4 (#2, 3, 4, 5)
