Mitee-Bite Modular Pitbull® Clamps

Modular Pitbull® Clamps

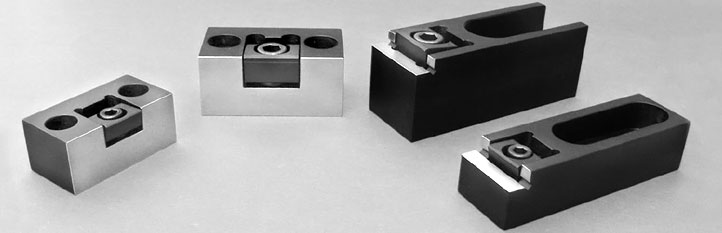

The Pitbull® Fixture Clamp is very well known for its low profile and positive down force. It is now available as a modular clamp in two styles.

The slotted Modular Pitbull® Clamp with a step offers increased versatility through its unique riser design. This clamp supports the work piece off the machine table for through milling and drilling. The hardened and ground clamps are designed for use on work cubes, as well as, machine tables with tapped holes or T-slot configurations.

The compact Modular Pitbull® Clamp is ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece. The back of the clamp is ground square to the bottom for precise location of parts. The height of the clamp can be adjusted by the depth of the milled slot used to locate the clamp.

Inch

Knife Edge	Blunt Edge	Description	A	B	C	D +.0000 -.0005	E	F	G	H*	Max Torque (Ft/lbs.)	Holding Force (lbs.)	Mounting Screw	Slot
26220	26225	Med/Compact	2.25	1.23	0.98	NA	0.62	1.50	–	.024	14.5	3600	5/16	–
26230	26235	Lrg/Compact	2.70	1.48	1.24	NA	0.74	1.86	–	.050	30.5	6000	3/8	–
26240	26245	Med/Slotted	4.08	1.25	0.99	0.73	0.36	1.70	0.50	.024	14.5	3600	1/2	Closed
26250	26255	Lrg/Slotted	4.20	1.50	1.61	1.378	0.36	1.52	0.43	.050	30.0	6000	5/8	Closed

H* – Clamp Travel
Mounting screws included.

Metric

Knife
Edge

Blunt
Edge

Description

D	+.000 -.013

Holding
Force (N)

Max
Torque
(N.m)

Mounting
Screw

Slot

56220

56225

Med/Compact

57.1

31.242

25.1

15.7

38.1

–

.61

16,000

22.5

–

56230

56235

Lrg/Compact

68.6

37.592

31.5

18.8

47.0

–

1.27

26,000

40.6

M10

–

56240

56245

Med/Slotted

103.6

31.700

25.1

18.542

9.1

43.2

12.7

.61

16,000

22.5

M12

Closed

56250

56255

Lrg/Slotted

107.0

38.100

40.9

35.000

9.1

38.6

10.9

1.27

26,000

40.6

M16

Closed
