Features: ■ ■Vertical and horizontal V-grooves on the fixed jaw insert andrecesses of both jaws enable a wide variety of workpieces to be clamped ■ ■ Body is made of high quality castingsApplication: ■ ■I deal for most drilling and light milling operations |
|
|
|
|
Code Number |

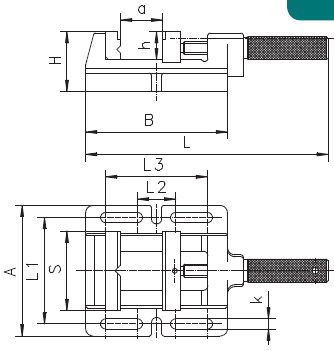

Type | S | A | B | H | L | L1 | L2 | L3 | a | h | k |
Max. Clamping Force (daN) |
kg |
| 326543540900 | 6543-85M | 85 | 140 | 152 | 64 | 265 | 114 | 41 | 109 | 70 | 30 | 11 | 400 | 3.4 |
| 326543550000 | 6543-100M | 100 | 152 | 170 | 64 | 285 | 124 | 57 | 127 | 85 | 30 | 13 | 500 | 4.0 |
| 326543560200 | 6543-120M | 120 | 176 | 212 | 64 | 360 | 148 | 71 | 169 | 120 | 30 | 13 | 650 | 5.0 |
| 326543570400 | 6543-150M | 150 | 208 | 262 | 66 | 442 | 178 | 75 | 209 | 150 | 38 | 13 | 800 | 8.4 |
