Features: ■ ■ The clamping of the workpiece is performed by a singlerotary movement of the lever ■ ■ The V-block is fastened to the fixed jaw, which enablesthe clamping of bars ■ ■ V-block enables horizontal or vertical clamping of flator round workpieces ■ ■Cam mechanism is hardened and ground removable jawinserts are hardened and blackened ■ ■ Body and movable jaw are high quality castingsApplication: ■ ■ Designed for milling and drilling operations, especiallyfor series machining and instant setting of the workpiece |
|
|
|
|
Code Number |

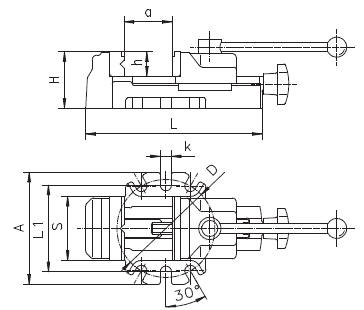

Type | S | A | H | L | L1 | D | a | h | k |
Max. Quick Grip Stroke |
Max. Clamping Force (daN) |
kg |
| 326542040600 | 6542-80 | 80 | 140 | 70 | 220 | 108 | 122 | 80 | 30 | 14 | 4 | 800 | 5.2 |
| 326542050800 | 6542-100 | 100 | 165 | 80 | 270 | 133 | 140 | 100 | 35 | 14 | 4 | 1200 | 8.9 |
