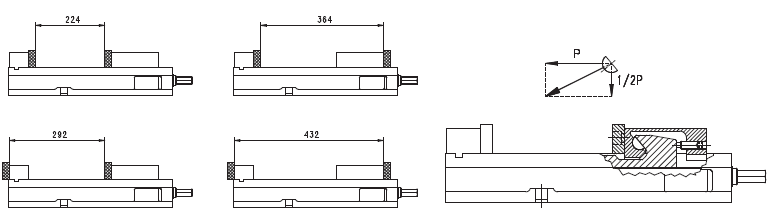

Features: ■■ Possible to secure the jaws in 4 different positions, increasing the clamping range of workpieces ■■ Steel jaw inserts, formed according to client’s requirements, are hardened and ground, ensuring longer life with maintained accuracy and repeatability ■■ Body and movable jaw are made of high-quality cast iron Application: Standard accessories: |
||||||||||||||||||
|
|
|||||||||||||||||||
|
Code Number |

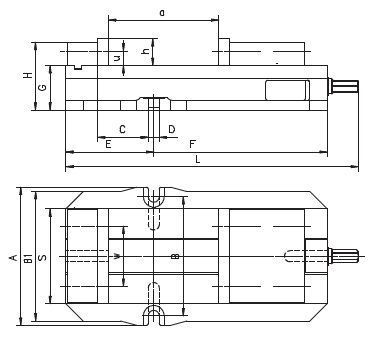

Type | S | A | B | B1 | C | D | E | F | G | H | L | a | h | u | w |
Max. Clamp Force (daN) |
kg | |
| 326523160400 | 6523-155L | 155L | 226 | 195 | 212 | 83 | 18 | 144 | 428 | 73.025 | 111 | 479 | 224 | 44 | 23.8 | 98.4 | 4500 | 34.2 | |
