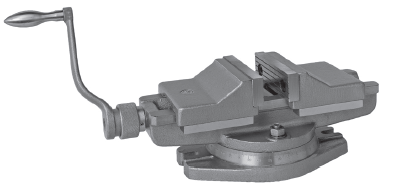

Bison Quality Self-Centering Vises
Type 6531

Features:



360 swivel base with ground contact edge and graduation
Removable grooved jaw inserts are hardened and ground
Sturdy design of cast iron

Application:
Designed for various types of milling and planing of forms,slots and grooves

Standard accessories:
Handcrank
Slot nuts

Code
Number
Type S A H L
Min.
L1 a h k Max.
Clamping
Force
(daN)
kg
326531006400 6531-125 125 168 136 458 208 100 40 15 2500 19.2
326531070600 6531-160 160 212 169 535 248 125 50 18 4000 33.5
326531080800 6531-200 200 286 185 591 333 160 63 18 5500 59.0
