Features: ■ ■Revised and upgraded successor model of Type 6800■ ■ Horizontal, vertical or side mounting■ ■ Set of 4 vises can be used vertically■ ■ Reversible fixed jaw■ ■ Quick re-adjustable, self-adjusting movable jaws■ ■ Can be used with removable jaw inserts■ ■ Made of high-grade alloy steel, stabilized and hardenedApplication: ■ ■ Designed for precision grinding and millingStandard accessories: ■ ■Wrench■ ■Slot nuts with „k” dimension■ ■Vise clamps■ ■Swinging lead plate |
|
|
|

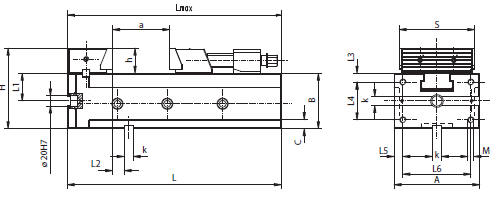

| Code Number | Type | S | A | a |
B -0.02 |
C | H | h | K | L |
L1 -0.02 |
L2 -0.02 |
L3 -0.01 |
L4 -0.01 |
L5 -0.01 |
L6 -0.01 |
M |
Clamp Force |
kg |
| 326820010900 | 6820-100-320-160 | 100 | 110 | 160 | 75 | 13 | 105 | 30 | 12 | 320 | 37.50 | 14 | 10 | 55 | 15 | 80 | M10 | 2000 | 19.2 |
| 326820020000 | 6820-125-335-160 | 125 | 130 | 160 | 90 | 15 | 130 | 40 | 12 | 335 | 45 | 19 | 15 | 55 | 17 | 96 | M12 | 3000 | 31.2 |
| 326820030200 | 6820-150-425-205 | 150 | 170 | 205 | 110 | 18 | 160 | 50 | 18 | 425 | 55 | 23 | 17.5 | 75 | 17.5 | 135 | M12 | 4100 | 63.4 |
