Code Number |

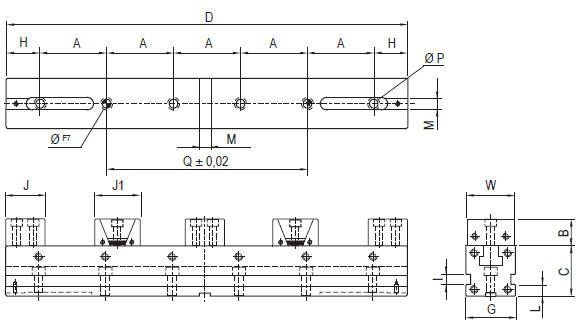

Type | A | B | C | D | G | J | J1 | I | L | MH7 | W |
Dia. P |
Q |
Dia. F |
kg |
| 326852530500 | 6852-50-300 | 100 | 25 | 50 | 300 | 50 | 38 | 44/50 | 12 | 15 | 16 | 49 | 9 | 100 | 10 | 6.60 |
| 326852540700 | 6852-50-400 | 100 | 25 | 50 | 400 | 50 | 38 | 44/50 | 12 | 15 | 16 | 49 | 9 | 100 | 10 | 8.10 |
| 32685255000 | 6852-50-500 | 100 | 25 | 50 | 500 | 50 | 38 | 44/50 | 12 | 15 | 16 | 49 | 9 | 300 | 10 | 9.50 |
| 326852560200 | 6852-50-600 | 100 | 25 | 50 | 600 | 50 | 38 | 44/50 | 12 | 15 | 16 | 49 | 9 | 300 | 10 | 11.00 |
| 326852570400 | 6852-50-700 | 100 | 25 | 50 | 700 | 50 | 38 | 44/50 | 12 | 15 | 16 | 49 | 9 | 400 | 10 | 12.50 |
| 326852740000 | 6852-75-400 | 100 | 40 | 75 | 400 | 75 | 50 | 52/58 | 16 | 20 | 16 | 74 | 13 | 300 | 16 | 20.79 |
| 326852750200 | 6852-75-500 | 100 | 40 | 75 | 500 | 75 | 50 | 52/58 | 16 | 20 | 16 | 74 | 13 | 200 | 16 | 24.29 |
| 326852760400 | 6852-75-600 | 100 | 40 | 75 | 600 | 75 | 50 | 52/58 | 16 | 20 | 16 | 74 | 13 | 300 | 16 | 27.79 |
| 326852770600 | 6852-75-700 | 100 | 40 | 75 | 700 | 75 | 50 | 52/58 | 16 | 20 | 16 | 74 | 13 | 400 | 16 | 31.29 |
| 326852780800 | 6852-75-800 | 100 |
40 |
75 | 800 | 75 | 50 | 52/58 | 16 | 20 | 16 | 74 | 13 | 500 | 16 | 34.80 |
| 326852170000 | 6852-100-700 | 100 | 60 | 100 | 700 | 100 | 70 | 84/90 | 12 | 20 | 16 | 99 | 17 | 400 | 16 | 63.00 |
| 326852180200 | 6852-100-800 | 100 | 60 | 100 | 800 | 100 | 70 | 84/90 | 12 | 20 | 16 | 99 | 17 | 500 | 16 | 68.50 |
| 326852190400 | 6852-100-900 | 100 | 60 | 100 | 900 | 100 | 70 | 84/90 | 12 | 20 | 16 | 99 | 17 | 400 | 16 | 74.00 |
| 326852100800 | 6852-100-1000 | 100 | 60 | 100 | 1000 | 100 | 70 | 84/90 | 12 | 20 | 16 | 100 | 17 | 500 | 16 | 79.50 |
