Precision CNC
Tombstones for Machining

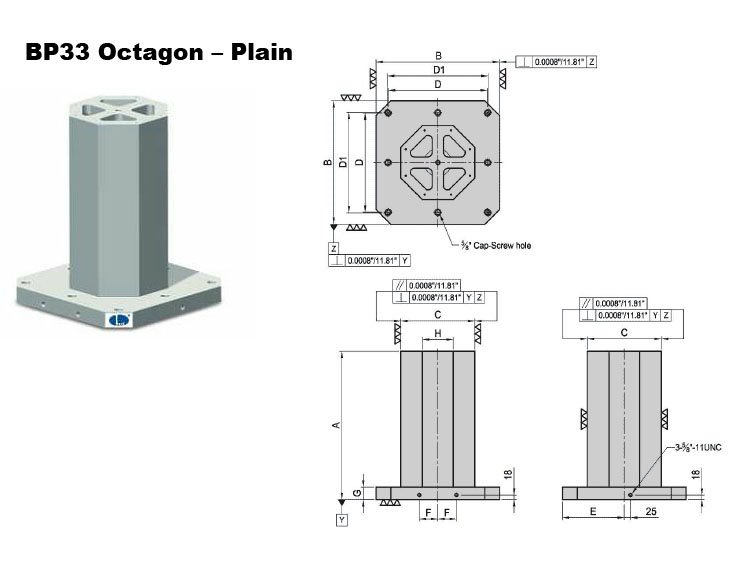

Octagon Type With Plain Sides
Material: FC300 series high strength iron – stress
relieved
Mounting Holes: Designed to fit all INCH &
MM pallets (other configurations available)
Accuracy: Flat, parallel & square < .001″ over 12″
Features:
-
Ready to accept a hole pattern for your special Jig
-
Eye bolt & Top cover included
We can custom build any tombstone to fit your special needs
ALL TOMBSTONE ARE DESIGNED TO FIT BOTH IN & MM PALLETS
|
MODEL NUMBER |
A |
B |
C |
D |
D1 |
E |
F |
G |
H |
Mount
Holes |
Weight |
Price |
|
BP33-400400-0500 |
19.69 |
400 |
15.75 |
9.84 |
320 |
11.81 |
7.87 |
55 |
1.97 |
4.06 |
4 |
353 |
$2,785 |
|
BP33-400400-0650 |
25.59 |
426 |
$3,340 |
|
BP33-500500-0600 |
23.62 |
500 |
19.69 |
11.81 |
400 |
16.00 |
9.84 |
75 |
1.97 |
4.88 |
8 |
540 |
$3,815 |
|
BP33-500500-0750 |
29.53 |
628 |
$4,480 |
|
BP33-630630-0700 |
27.56 |
630 |
24.80 |
13.78 |
500 |
20.00 |
12.40 |
100 |
1.97 |
5.71 |
8 |
867 |
$5,425 |
|
BP33-630630-0850 |
33.46 |
975 |
$6,190 |
|
BP33-800800-0800 |
31.50 |
800 |
31.50 |
19.69 |
640 |
25.00 |
15.75 |
135 |
1.97 |
8.15 |
8 |
1528 |
$8,065 |
|
BP33-800800-1000 |
39.37 |
1760 |
$9,520 |
Prices Subject To
Change Without Prior Notification
|
